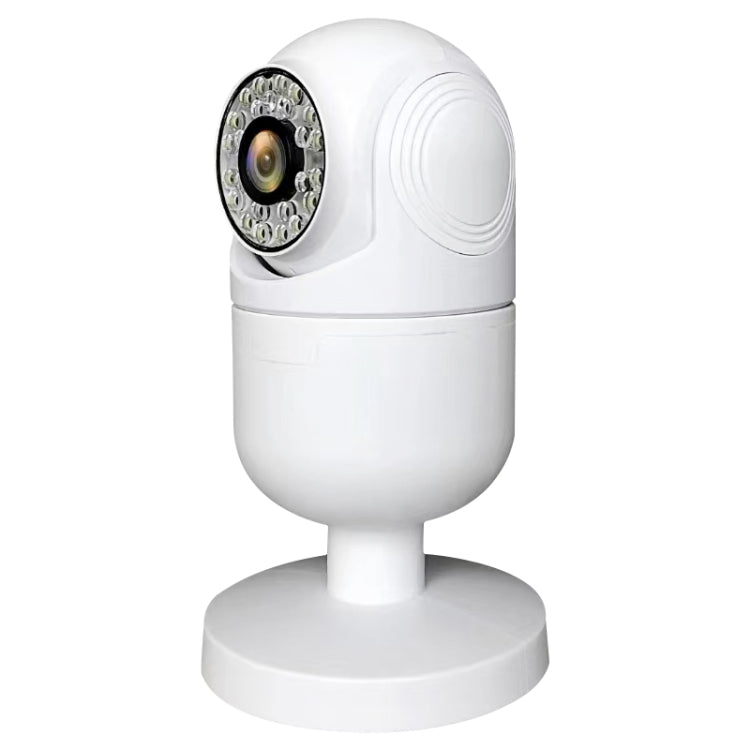

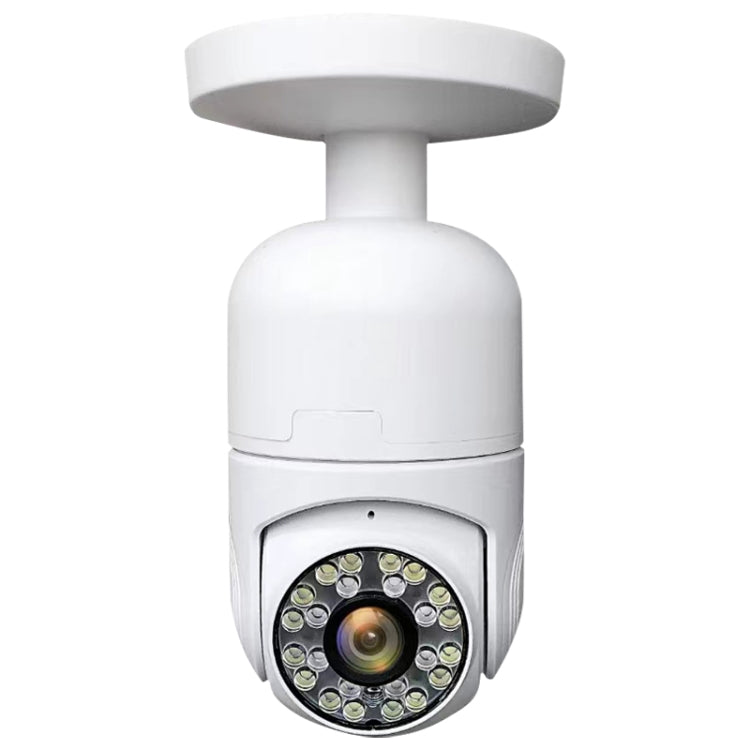

YT53 3MP Indoor HD Surveillance Wireless PTZ Camera, AU Plug, EU Plug, UK Plug, US Plug

YT53 3MP Indoor HD Surveillance Wireless PTZ Camera, AU Plug, EU Plug, UK Plug, US Plug

Start Designing
$25.15 USD
$25.15 USD
Sale Sold out
Option
1. Pixel: 3MP
2. Main control chip: AK3918E-V330L
3. Resolution: 2304x1296
4. Focal length: 4mm

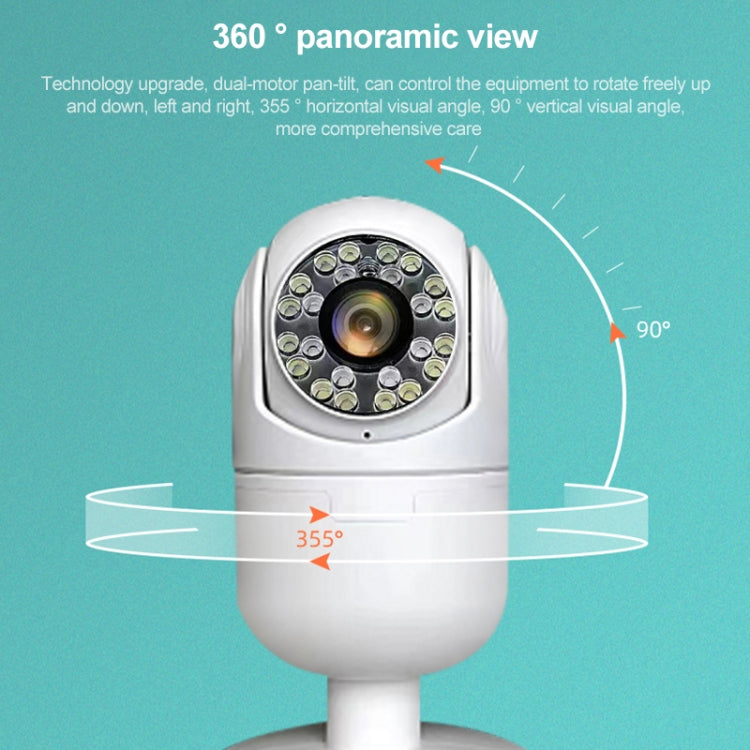

5. PTZ: Horizontal rotation: 360 degrees Vertical: 90 degrees
6. Frame rate: 1-25fps
7. Power supply mode: DC5V/1.5A 5W
8. Support two-way voice intercom, alarm recording, mobile tracking.
9. Maximum support for 128G external expansion card
Specification:
General
Power Depletion 5W
Power Supply DC 5V 1.5A
Performance Motion detection, Alarm detection, Two-way voice intercom
Memory up to 128GB (not included)
Function PTZ
Power Plug AU Plug, US, EU, UK Plug Optional
Network
Wireless WiFi 802.11 b/g/n
Protocol NTP, SMTP, TCP, HTTP, TCP/IP
System / Hardware
Mobile Access Android, iPhone OS
Pixels 3.0MP
Lens 4.0mm
Pan/Tilt-Horizontal Angle 360 Degrees
Pan/Tilt-Vertical Angle 90 degree
Media Format
Video Compression Format H.265
Frame Rate (FPS) 1-25fps
Physical Environment
Operate Temperature -10 to 50 Degree Celsius
Working Humidity Less than 95 percent
Package Weight
One Package Weight 0.35kgs / 0.78lb
One Package Size 20cm * 11cm * 10cm / 7.87inch * 4.33inch * 3.94inch
Qty per Carton 40
Carton Weight 15.00kgs / 33.07lb
Carton Size 42cm * 57cm * 42cm / 16.54inch * 22.44inch * 16.54inch
Loading Container 20GP: 265 cartons * 40 pcs = 10600 pcs
40HQ: 615 cartons * 40 pcs = 24600 pcs
