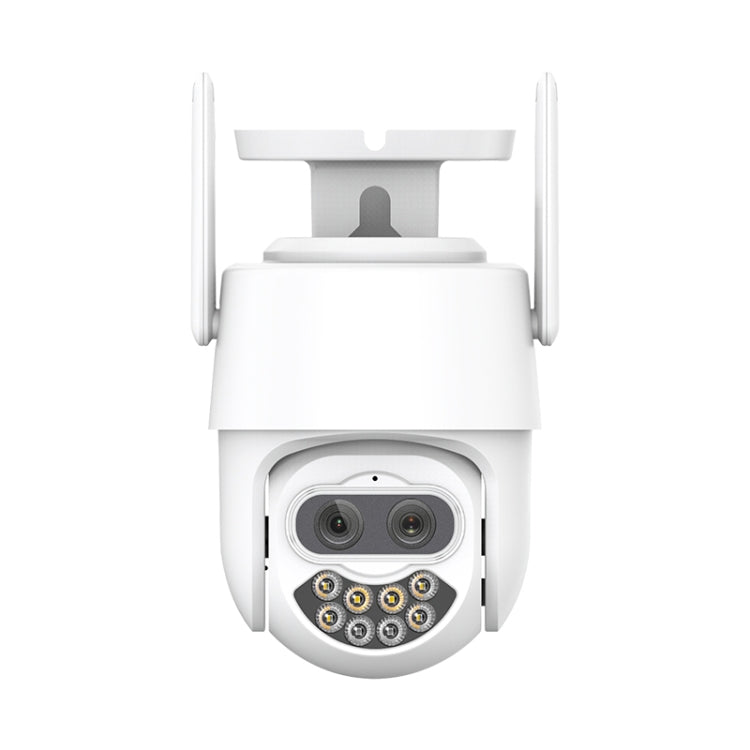

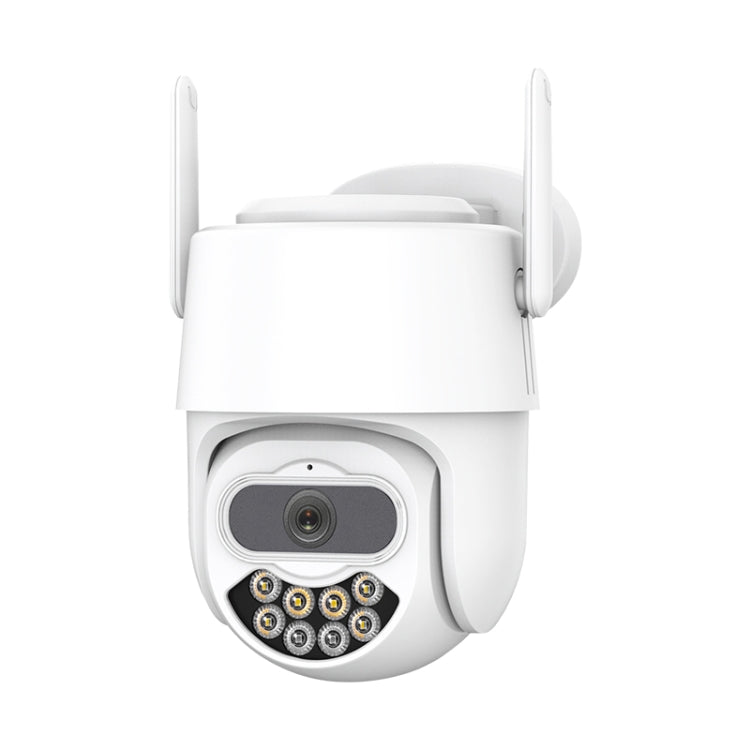

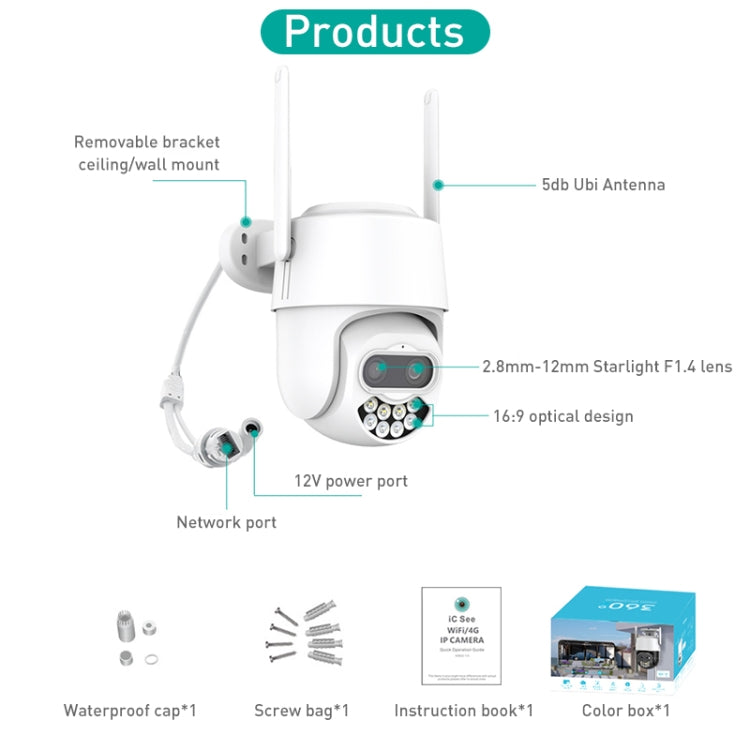

QX82 400W Dual Screen Dual Channel Synchronous Monitoring IP Camera, AU Plug, US Plug, EU Plug, UK Plug
QX82 400W Dual Screen Dual Channel Synchronous Monitoring IP Camera, AU Plug, US Plug, EU Plug, UK Plug
Start Designing
Regular price
$43.64 USD
Regular price
Sale price
$43.64 USD
Unit price
/
per
Couldn't load pickup availability
1. 2pcs 4.0MP chips overlapping design makes image clear and delicate;

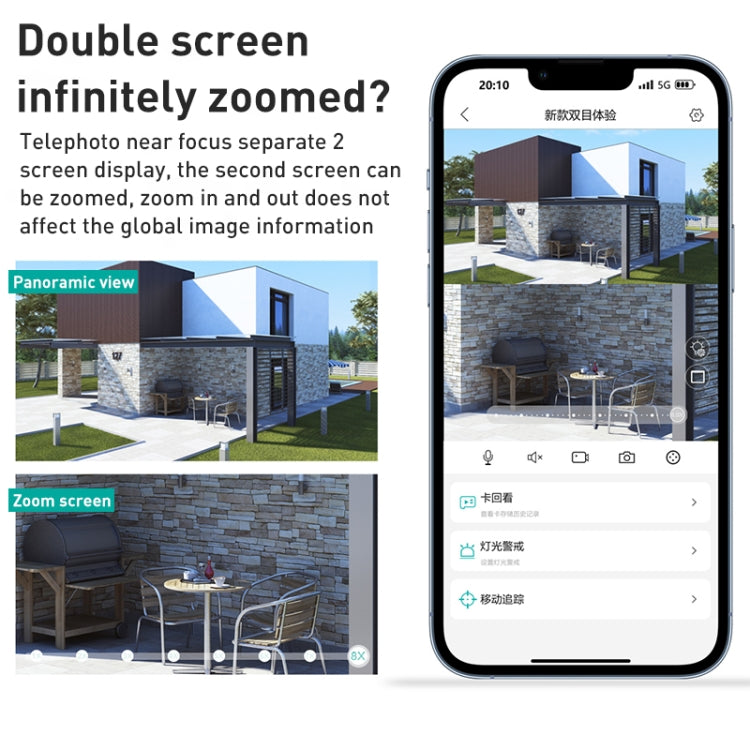

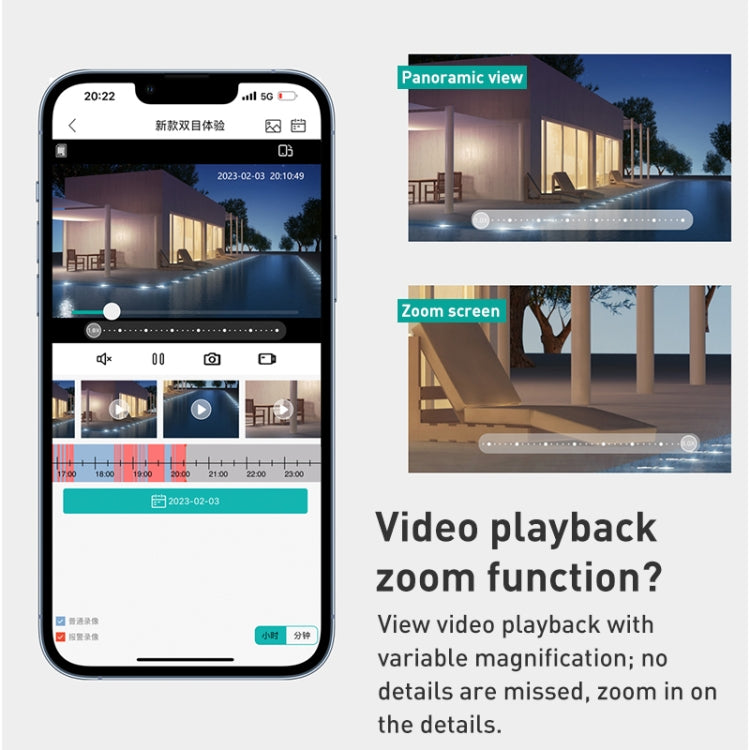

2. Support dual-picture preview, picture-in-picture preview, physical pixel 8.0MP;
3. The long-focus imaging module matches the short-focus imaging module 2.8mm-12mm realizes 8x hybrid zoom;
4. Built-in speaker, microphone, support two-way voice intercom;
5. Support automatic cruise, detailed scanning；support full-coloralert, push accurate human alarm ;
6. Yutong F1.4 starlight lens
Technical Parameters
1. Sensor: 4MPx2=8MP SC5239
2. System Structure: Dual-core 32-bit DSP (NT98566), pure hard compression,watchdog
3. Minimum illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR; Black and white: 0.001 Lux @ (F1.2, AGC ON), 0 Lux with IR
4. Video Processing: H.265AI encoding, dual stream, AVI format; stream 0.1M~10Mpbs adjustable; frame rate 1~30 frames/sec adjustable
5. Image Output: Main stream: 2560*1440@12fps, Sub-stream: 800*448@12fps
6. Shutter: 1/50 (1/60) second to 1/10000 second
7. Lens: 2.8mm+12mm, combination of long focal length len + short focal length len
8. Day&Night Switching Mod: Support IR-CUT
9. Noise Reduction: Support 2D/3D noise reduction
10. Wide Dynamic: Support wide dynamic
11.Audio Processing: G.711A codec standard, support two-way voice intercom function, support audio and video synchronization
12. Audio Port: 1 input, level 2Vp-p, impedance 1kΩ; 1 output, impedance 16Ω, 30mw output power
13. Network Interface: 1 x RJ45 Ethernet interface, 10/100M adaptive
14. Signal Interface: 1 x photoresistor interface, 1 x IR-CUT driver interface, support the linkage of photoresistor input signal with IR-CUT, infrared light
15. PTZ Interface: 1 x horizontal motor interface, 1 x vertical motor interface
16. Reset.Key.Interface: Support one-key reset function
17. Storage Method: Local TF card, maximum 128G(not uncluded) ; cloud storage
18. Reliability: Comprehensive lightning protection, in line with national and international standards; 7*24 hours 65 ℃high temperature test is stable and reliable (including the whole machine test)
19. Intelligent Analysis: Support humanoid detection, support customization of other intelligent function
20. Business Functions: Support mobile client remote monitoring; support message push after humanoid detection and alarm; support MJPEG snapshot
21. ONVIF: Support
22. Phone Monitoring: Support mobile phone monitoring (iOS, Android) ICSEE APP
23. Power: DC12/2A, 5W
24. Light source: 6 infrared+6 white light
25. Lighting mode: Starlight full color/infrared night vision/dual light alert
2. Support dual-picture preview, picture-in-picture preview, physical pixel 8.0MP;
3. The long-focus imaging module matches the short-focus imaging module 2.8mm-12mm realizes 8x hybrid zoom;
4. Built-in speaker, microphone, support two-way voice intercom;
5. Support automatic cruise, detailed scanning；support full-coloralert, push accurate human alarm ;
6. Yutong F1.4 starlight lens
Technical Parameters
1. Sensor: 4MPx2=8MP SC5239
2. System Structure: Dual-core 32-bit DSP (NT98566), pure hard compression,watchdog
3. Minimum illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR; Black and white: 0.001 Lux @ (F1.2, AGC ON), 0 Lux with IR
4. Video Processing: H.265AI encoding, dual stream, AVI format; stream 0.1M~10Mpbs adjustable; frame rate 1~30 frames/sec adjustable
5. Image Output: Main stream: 2560*1440@12fps, Sub-stream: 800*448@12fps
6. Shutter: 1/50 (1/60) second to 1/10000 second
7. Lens: 2.8mm+12mm, combination of long focal length len + short focal length len
8. Day&Night Switching Mod: Support IR-CUT
9. Noise Reduction: Support 2D/3D noise reduction
10. Wide Dynamic: Support wide dynamic
11.Audio Processing: G.711A codec standard, support two-way voice intercom function, support audio and video synchronization
12. Audio Port: 1 input, level 2Vp-p, impedance 1kΩ; 1 output, impedance 16Ω, 30mw output power
13. Network Interface: 1 x RJ45 Ethernet interface, 10/100M adaptive
14. Signal Interface: 1 x photoresistor interface, 1 x IR-CUT driver interface, support the linkage of photoresistor input signal with IR-CUT, infrared light
15. PTZ Interface: 1 x horizontal motor interface, 1 x vertical motor interface
16. Reset.Key.Interface: Support one-key reset function
17. Storage Method: Local TF card, maximum 128G(not uncluded) ; cloud storage
18. Reliability: Comprehensive lightning protection, in line with national and international standards; 7*24 hours 65 ℃high temperature test is stable and reliable (including the whole machine test)
19. Intelligent Analysis: Support humanoid detection, support customization of other intelligent function
20. Business Functions: Support mobile client remote monitoring; support message push after humanoid detection and alarm; support MJPEG snapshot
21. ONVIF: Support
22. Phone Monitoring: Support mobile phone monitoring (iOS, Android) ICSEE APP
23. Power: DC12/2A, 5W
24. Light source: 6 infrared+6 white light
25. Lighting mode: Starlight full color/infrared night vision/dual light alert
